ASC auto-set Slitter Scorer

Slitting & Creasing, the easy way.

Input your required blank dimensions and let the machine do the rest.

Auto-set knives and crease tools move instantly into position.

With vacuum feed and stacker this is the most productive slitter ever...

Servo-set Thin blade Slitter Scorer

Vacuum Auto-feeder

Advanced servo-driven vacuum feeding technology with automatic sheet alignment
Achieves precise feeding at speeds up to 150m/min with ±0.5mm accuracy
Maximizes production efficiency while reducing material waste and operator fatigue
leading to 30-40% higher throughput compared to manual feeding

Auto-set Tooling

PLC-controlled automatic positioning system with human-machine interface
Automated adjustment of pre-pressing rollers, slitting blades, and scorer tools
Memory for 999 different order settings
Reduces setup time by up to 70% while ensuring consistent quality across all production runs with ±0.5mm precision

Regrinding Knives

High-grade tungsten steel thin blades with integrated auto/manual grinding capability
Self-maintaining blade sharpness system with precision control
Delivers clean, burr-free cuts consistently while reducing maintenance downtime and extending blade life by up to 40%

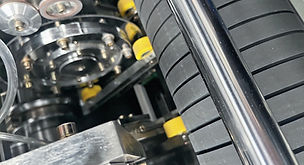

Slitter with rubber grip roll for accuracy

Technical Data

Model
No. of slitting scoring heads
Max.production speed
Max.feeding width
Max.slitting width
Min.slitting width
Min.feeding length
Min.scoring distance
Gap adjustment
Main motor power
Dimensions LWH*
Weight
Optional Stacker table/counter

ASC-2500
4/6 5/8 6/10
150m/min
2500mm
2250mm
200mm
200mm
40135mm
Auto
12kw
15703450*1500mm
3780kg
Yes

ASC-3000
4/6 5/8 6/10
150m/min
3000mm
2750mm
200mm
200mm
40135mm
Auto
14kw
15703950*1500mm
3980kg
Yes

The ASC slitter scorer encompasses the future of corrugated packaging automation, where precision meets productivity.

With its advanced PLC control system, high-speed capability of up to 150m/min, and precision of ±0.5mm, this machine delivers the perfect balance of efficiency and quality that modern sheet plants demand.

The integration of premium components from world-renowned manufacturers like Panasonic, Schneider, and Mitsubishi ensures reliable performance and longevity.

Whether you're operating the ASC-2500 or the larger ASC-3000 model, you're investing in a solution that not only maximizes production efficiency but also contributes to sustainability through reduced waste and optimal material usage.

As the modern sheet plant continues to evolve, this machine stands ready to meet the challenges of tomorrow while delivering exceptional value today.
